Gain Structure Diagram

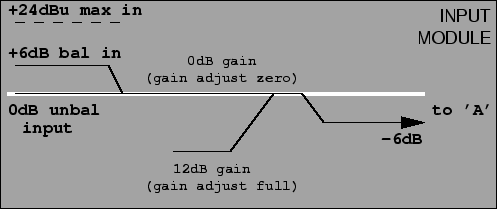

Taking audio specifications in to account, overall system gain structure diagrams have been constructed. Figure 28 depicts the input gain structure for a single channel. Included in this section is gain reduction for a balanced input, adjustable trim control, and an overall gain reduction before passing to the next stage.

**Figure 28:** Mixer unit gain structure diagram, input section.
$\begin{figure} \psfig{file=fig/gainstruc-in.eps} \end{figure}$

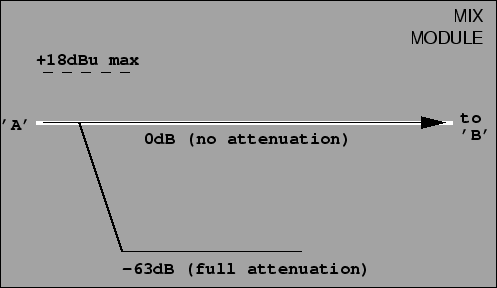

Figure 29 depicts the gain structure for the mix stage of the mixer unit. This stage only attenuates the input signal, up to 63dB, as per the high-level specification.

**Figure 29:** Mixer unit gain structure diagram, mixer section.
$\begin{figure} \psfig{file=fig/gainstruc-mix.eps} \end{figure}$

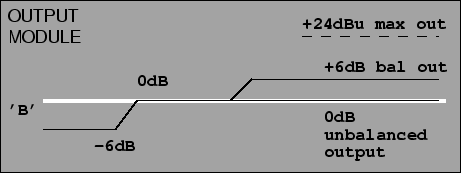

Figure 30 shows the gain structure for the output stage. Note a constant input section gain, and a constant gain on the balanced outputs.

**Figure 30:** Mixer unit gain structure diagram, output section.
$\begin{figure} \psfig{file=fig/gainstruc-out.eps} \end{figure}$
